Uniguard Machine Guards
Type CGU-Kit Guard
Our most economical guarding solution.
Economical coupling protection with a doghouse-style cover and customizable panels that close the space beneath the shafts. Supplied as a kit for assembly and fitting to your equipment.
- Seven stock sizes · CGU-04 through CGU-20
- Field-fit panels · Adapt to your shaft openings
- Polyethylene construction · Type 304 stainless steel hardware
Dimensions & available models
Find the right CGU-Kit Guard
Compare the seven stock models below. All dimensions are in inches; shaft CL means shaft centerline. Use the drawing to identify length, width and height, and confirm the fit for your equipment.
Select the drawing for a larger view.
| Model | Length | Width | Height | Shaft slot | Shaft CL |
|---|---|---|---|---|---|
| CGU-04 | 4 | 4 | 6 | 1.25 | 3.88 |
| CGU-06 | 6 | 6 | 8 | 1.75 | 5.00 |
| CGU-08 | 8 | 8 | 12 | 2.25 | 7.88 |
| CGU-10 | 10 | 10 | 14 | 2.75 | 8.81 |
| CGU-12 | 12 | 12 | 16 | 3.00 | 10.00 |
| CGU-16 | 16 | 16 | 20 | 4.00 | 12.06 |
| CGU-20 | 20 | 20 | 24 | 5.00 | 14.00 |
Dimensions shown as published in the stock sizing chart. Need a different fit? Ask about a custom guard.
Model-specific drawings
CGU-Kit Guard diagrams & PDF downloads
Select a diagram for a larger view, or download the original PDF for your model.

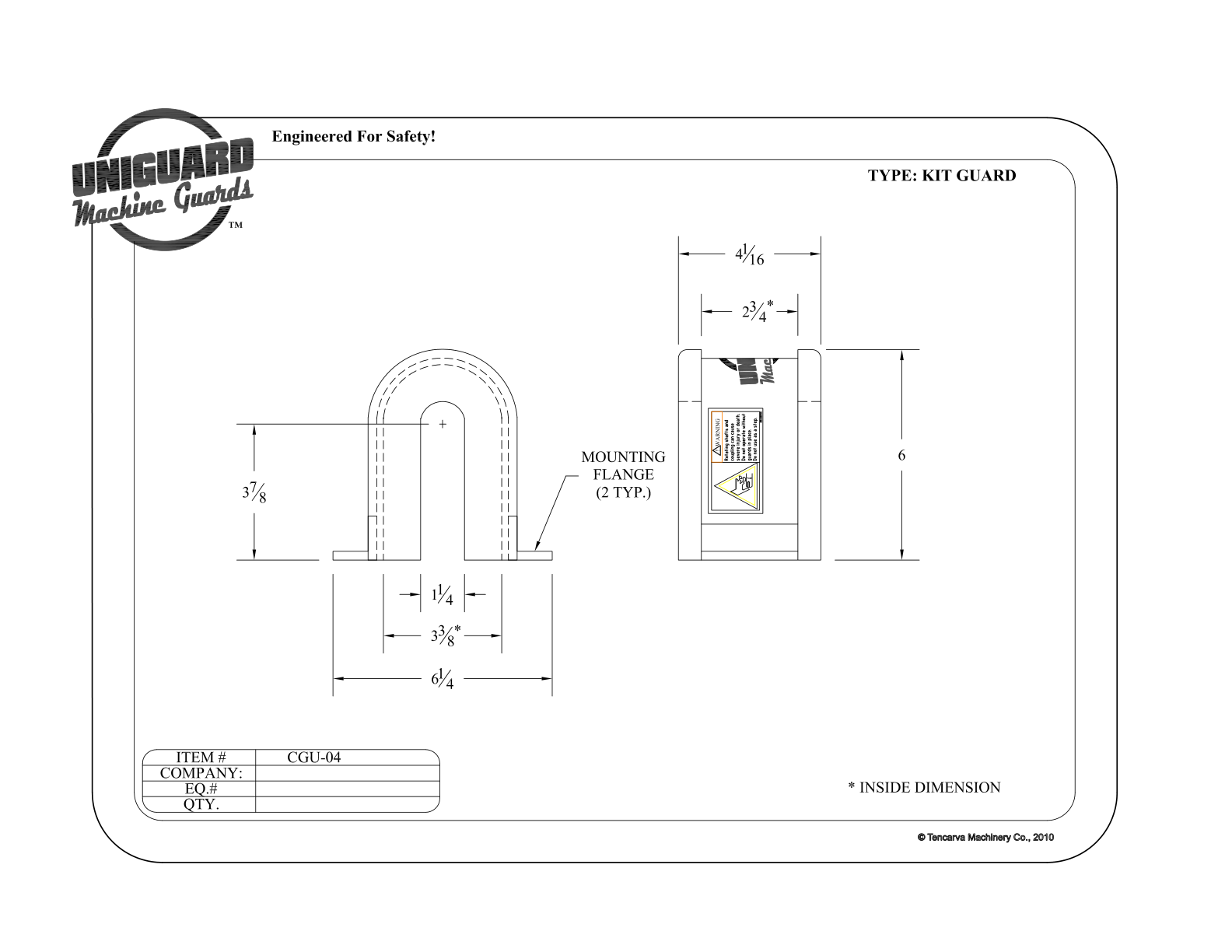

CGU-04

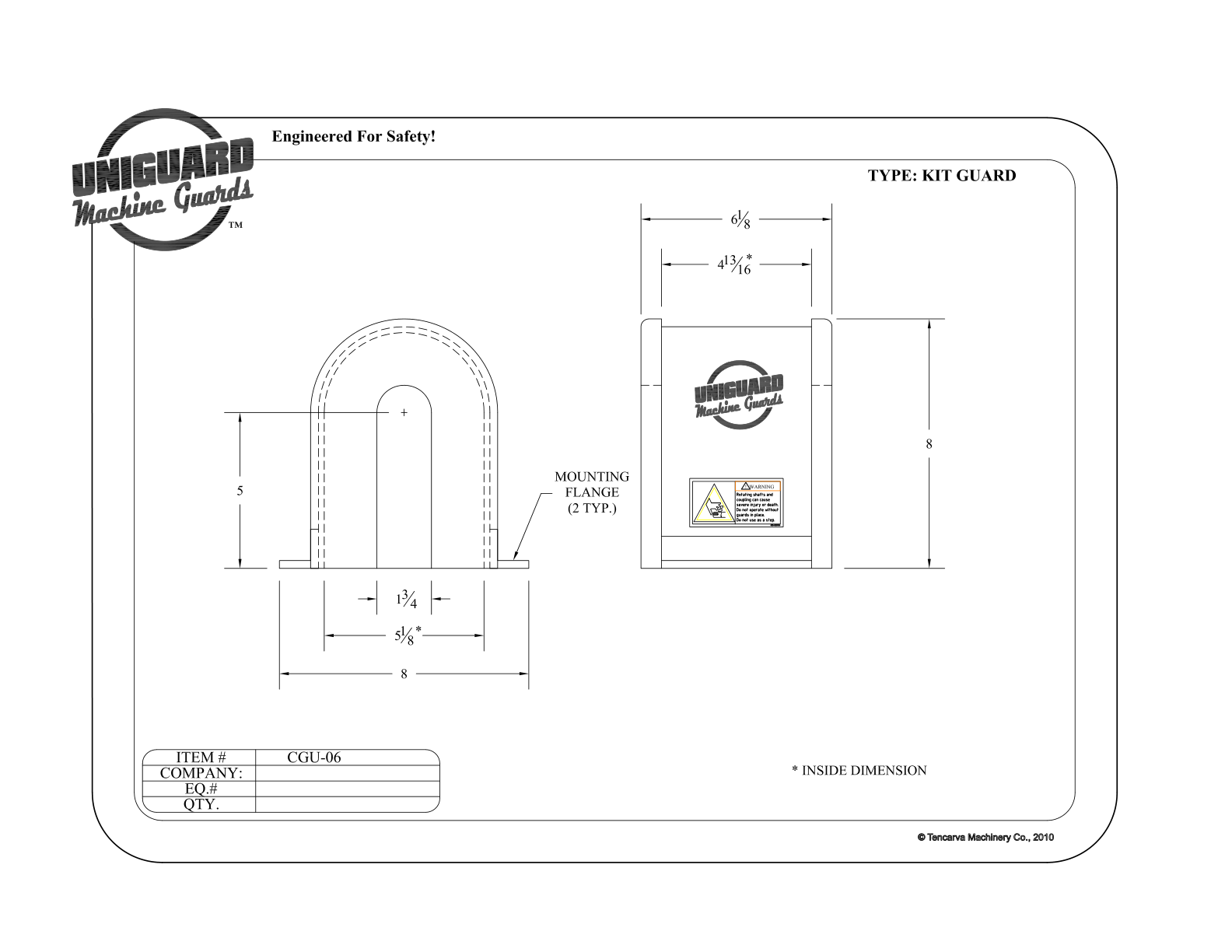

CGU-06

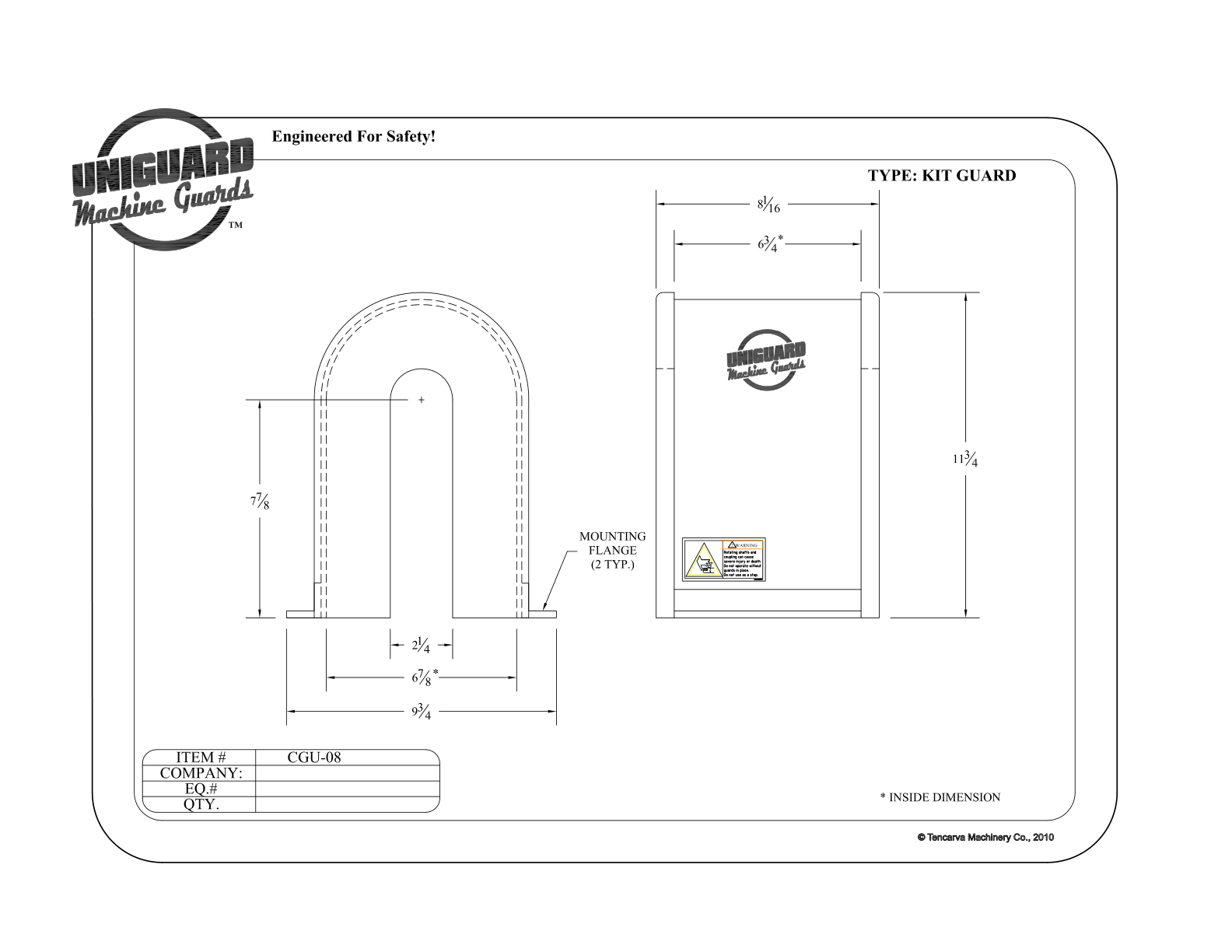

CGU-08

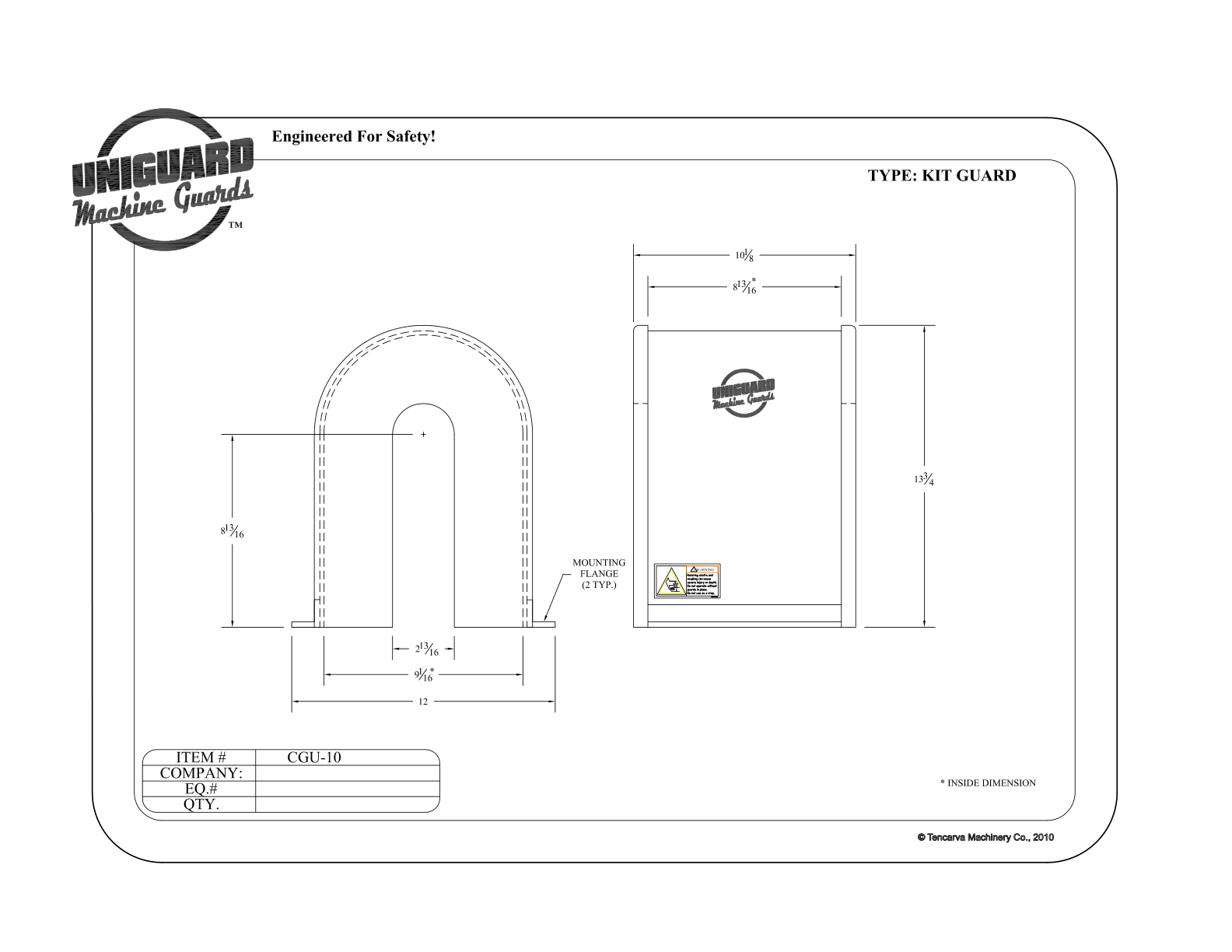

CGU-10

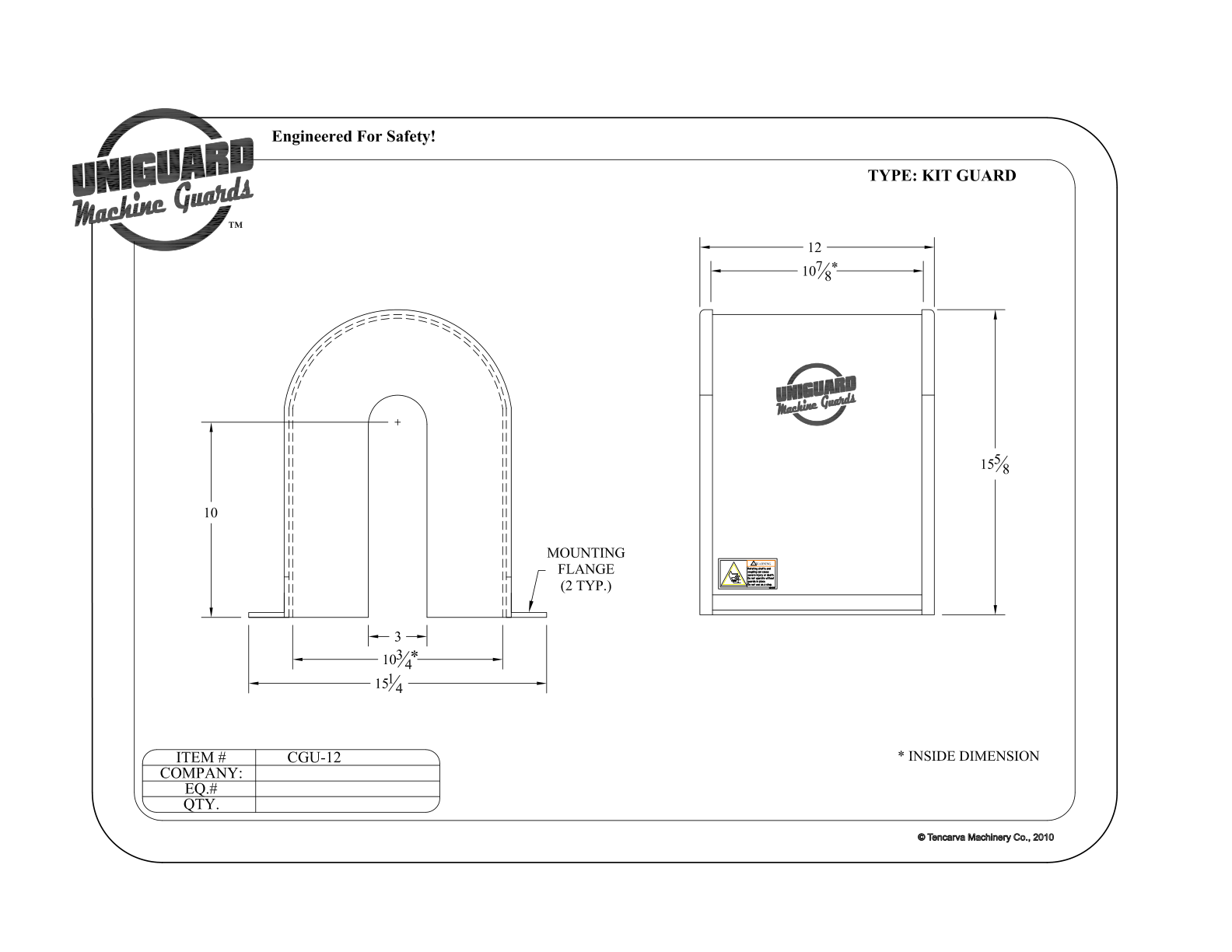

CGU-12

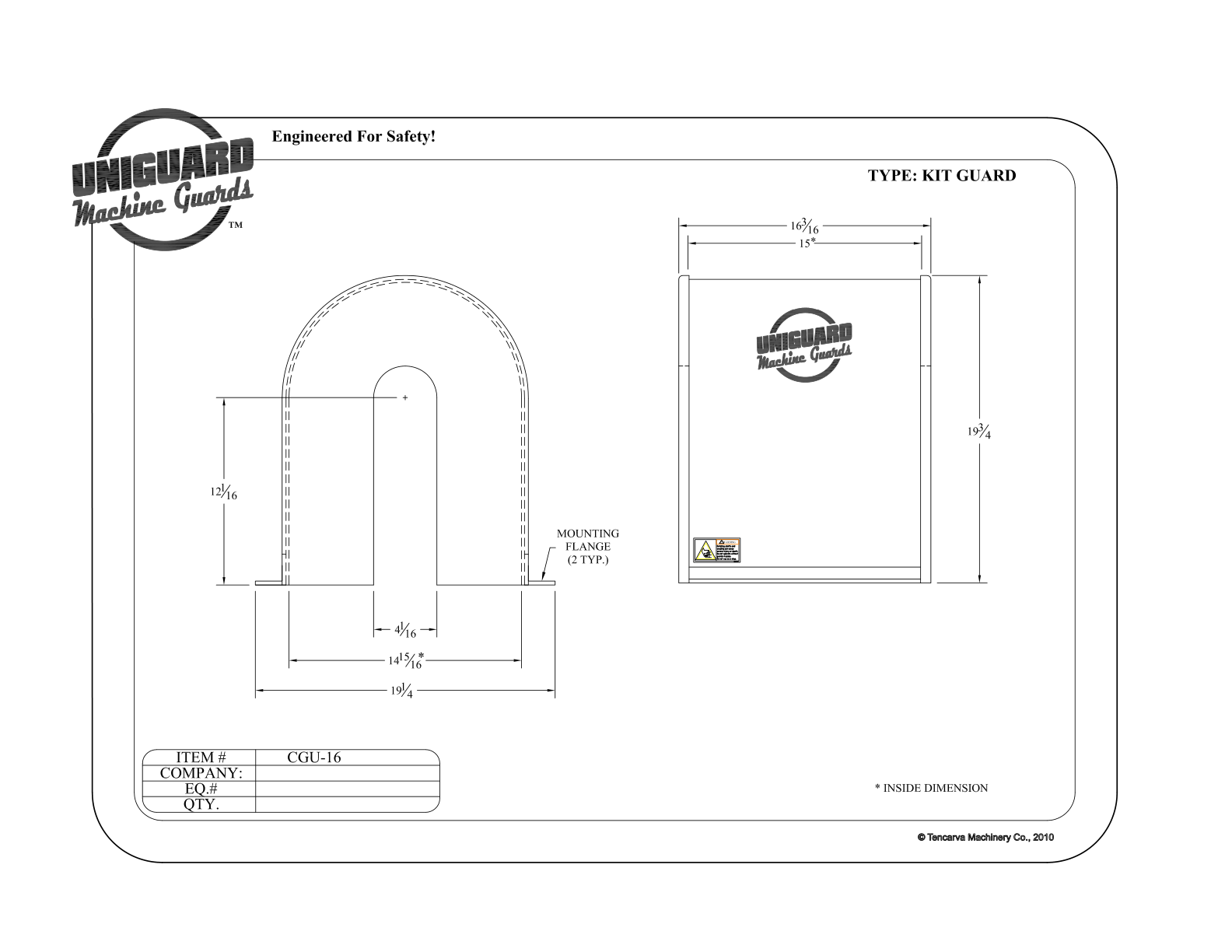

CGU-16

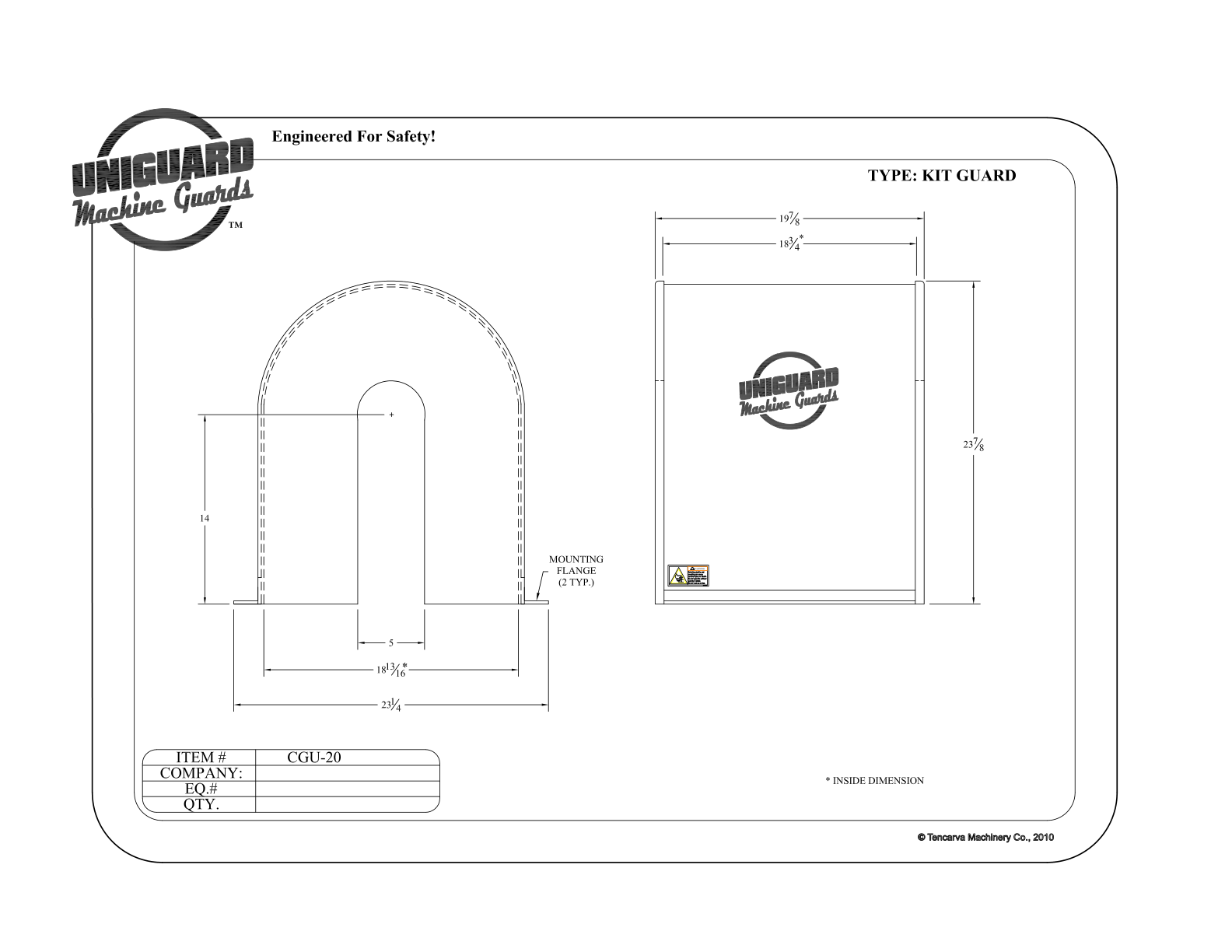

CGU-20
Dimensions in these drawings may differ from the stock sizing chart. Confirm the required dimensions with Uniguard before ordering.
See it in the field
Type CGU-Kit Guard Photo Gallery
Explore CGU-Kit Guards installed on real equipment.
Tell us about your application
Request a CGU-Kit Guard quote
Need help choosing a stock size or fitting a custom application? Share your equipment details and dimensions using the form below, or call 888-549-4622 to discuss your application.
